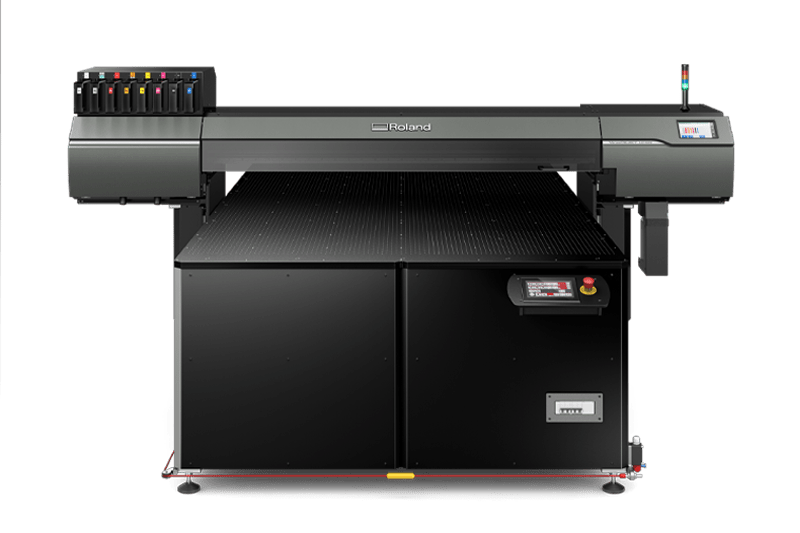

VersaOBJECT CO-i Series
Flatbed UV Printer
Take object customisation to new heights with the VersaOBJECT CO-i Series of UV flatbed printers. Digital UV printing has never been more versatile and the CO-i Series is the perfect solution for customising boards or objects up to 242 mm in height and even irregular 3D objects.
- Premium quality direct-to-object or substrate printing.
- Special effect printing for added-value products.
- High-volume object customisation and personalisation.
- Available in a size and configuration to suit your business.
Flatbed UV Printing Solutions
CO-640i
Flatbed UV Printer
With Vacuum
CO-300i
Flatbed UV Printer
The Ultimate in Versatile Print Production
Deliver high-quality vibrant and impactful graphics onto a vast range of objects and substrates, including metal, plastic, board, wood, canvas, vinyl, paper and much more besides, accommodating material up to 242 mm height.
Everything You Need to Succeed
Choose from 5 different models and sizes to suit your business
Power your workflow with our most intelligent engine yet
Get stunning results every time with economical Eco UV ink
Secure your investment with industry-leading support
High Quality and Versatile ink
Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility. Talk to a Roland DG expert about your print requirements to discover the ink configuration that’s right for you.
CMYK
Get premium results with high-quality CMYK EUV ink
Gloss
Generate a multitude of tangible effects, simulated embossing and gloss finishes
White
Print high-opacity white details or add sub-coats for dark or transparent materials
Red and Orange
With our True Rich Color preset, extend your available gamut and reproduce brand colours perfectly
Primer
Apply primer to the print area with precision for extensive media compatibility
Certifications
GREENGUARD Gold
ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.
Print onto a virtually limitless range of flexible and rigid substrates and objects.
VersaWorks 6 included, letting you print directly onto a variety of objects in a simple workflow.
Make a safe investment with Roland DG’s world-renowned quality and reliability.
Produce your work, your way with flexible job-management features.
Match your customers’ colour with ease thanks to advanced RIP features.
Reduce your reliance on screen and pad storage and make your space work for you.
Print directly onto irregular or curved objects with a high degree of accuracy.
Switch to digital direct-to-object printing and eliminate long set-up and finishing times.
Long-life print heads and ink-clogging prevention ensures long life and sustained quality.
Add extra expression to your prints easily with a library full of exciting printable textures.
Track ink usage and more in real time with the Roland DG Connect mobile app.
Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
Highlighted Features
Impressive Height and Weight Capabilities
Offering extraordinary application versatility, the CO-i Series can print on objects up to 242 mm in height and 100 kg/m2 in weight.
Low-temperature Adjustable UV-LED Lamps
Intensity of the UV-LED lamps is adjustable from VersaWorks enabling them to be switched on or off, or anywhere in between. This means Gloss, Primer and White can be used as an adhesive layer before a secondary process to apply glitter or foil and then cured with UV to seal.
Integrated Control Panel
The control panel of the CO-i Series is integrated into the table to allow you to work more efficiently in less space. The more efficient design removes the conjoining cable trip hazard, reducing the possibility of damaging the device and increasing safety.
Print Large Quantities of Smaller Items
Improve your productivity with a fast and efficient direct-to-object printing solution. The CO-i Series lets you print unique details on several items in a single print run and with VersaWorks 6 features like variable data printing, you can individually personalise each item quickly and with minimal set-up.
Safety Control Features
An emergency stop perimeter around base (and on the side of the device) safeguards operators in the busiest of production environments. Plus, there is a signal beacon with variable alerts to clearly highlight the printer status.
Distance Mode
The CO-i Series flatbed UV printers feature an innovative Distance Mode. This makes it possible to print onto convex, concave or irregular surfaces whilst maintaining excellent quality and sharpness.
VersaWorks 6
RIP Software
Roland Dg
Connect App
PrintAutoMate
Model | CO-300i-F2 | CO-300i-F2A | CO-640i-F2 | CO-640i-F3 | CO-640i-F4 | |||
Printing Method | Piezo ink-jet method | |||||||
Attachable objects to be printed on | Width | Max. 762 mm (30 in.) | Max. 762 mm (30 in.) | Max. 1,625 mm (64 in.) | Max. 1,625 mm (64 in.) | Max. 1,625 mm (64 in.) | ||
Thickness | Max. 242 mm (9.5 in.) | |||||||
Weight | Max. 100 kq/m2 (0.142 Ib./in2) | |||||||
Maximum Printing Width/Length | Max. 749 × 1,500 mm (29.4 in. × 59.0 in.) | Max. 749 × 1,500 mm (29.4 in. × 59.0 in.) | Max. 1,612 × 1,500 mm (63.4 in. × 59.0 in.) | Max. 1,612 × 2,500 mm (63.4 in. × 98.4 in.) | Max. 1,612 × 3,050 mm (63.4 in. × 120.0 in.) | |||
Ink | Types | ECO-UV(EUV5) 220 ml cartridge(White) ECO-UV(EUV5) 500 ml cartridge(Cyan, Magenta, Yellow, Black, Red, Orange, Gloss, Primer) |
||||||
Colours | Eight colours (Cyan, Magenta, Yellow, Black, Red, Orange, White, Gloss) Seven colours (Cyan, Magenta, Yellow, Black, Red, Orange, White) Seven colours (Cyan, Magenta, Yellow, Black, Red, Orange, White) and Primer Seven colours (Cyan, Magenta, Yellow, Black, Red, White, Gloss) and Primer Six colours (Cyan, Magenta, Yellow, Black, White, Gloss) and Primer Six colours (Cyan, Magenta, Yellow, Black, White, Gloss) Four colours (Cyan, Magenta, Yellow, Black) |
|||||||
Ink-curing Unit | Built-in UV-LED lamp | |||||||
Printing Resolution (dots per inch) | Max. 1,440 dpi | |||||||
Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |||||||
Power-saving Function | Automatic sleep feature | |||||||
Power Requirements | 230V 16A 2P+E | |||||||
Power Consumption | During Operation (100% Vacuum) | Approx. 1.80 kW | Approx. 0.24 kW | Approx. 1.80 kW | Approx. 2.90 kW | Approx. 2.90 kW | ||
Sleep Mode | Approx. 0.08 kW | |||||||
Acoustic Noise Level | During Operation | 80 dB (A) or less | 70 dB (A) or less | 80 dB (A) or less /td> | 90 dB (A) or less | 90 dB (A) or less | ||
During Standby | 70 dB (A) or less | 60 dB (A) or less | 70 dB (A) or less | 80 dB (A) or less | 80 dB (A) or less | |||
Dimensions (Width x Depth x Height) | 1,928 mm × 2,384 mm × 1,469 mm ( 76.0 in. × 93.9 in. × 57.9 in.) | 1,928 mm × 2,384 mm × 1,469 mm ( 76.0 in. × 93.9 in. × 57.9 in.) | 2,815 mm × 2,384 mm × 1,469 mm ( 110.9 in. × 93.9 in. × 57.9 in.) | 2,815 mm × 3,399 mm × 1,469 mm ( 110.9 in. × 133.9 in. × 57.9 in.) | 2,815 mm × 3,999 mm × 1,469 mm ( 110.9 in. × 157.5 in. × 57.9 in.) | |||
Weight | 487 kg ( 1,074 lb.) | 455 kg ( 1,004 lb.) | 667 kg ( 1,471 lb.) | 863 kg ( 1,903 lb.) | 959 kg ( 2,115 lb.) | |||
Environment | During Operation (*1) | Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation) | ||||||
Not Operating | Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation) | |||||||
Included Items | Power cord, cleaning liquid, drain bottle, User’s Manual, software (VersaWorks, Roland DG Connect), etc. |
