Overview

Roland DWX-50

dwx50

  • Automatic tool changer

    dwx_50_atc1

  • Versatile applications

    The DWX-50 produces quality dental prosthetics at an affordable price.

    Examples are bridges, crowns, abutments and temporary solutions like Inlays, Onlays and Veneers.

    It can process a wide variety of materials. These include zirconium, wax, PMMA, acrylic, Peek, hybrid composites, and nano-ceramics.

    The DWX-50 is equipped with universal media clamps and adapters that hold standard material discs and blocks in place.

  • 5-axis milling machine

    The device has an X, Y and Z axis and also rotates the material via the A (rotary) axis through 180 degrees for operations on all sides.

    For complex operations, the device can also tilt a fifth axis (B-axis) for up to 20 degrees.

    The five axes can be activated simultaneously if necessary.

  • Circolare in PMMA trasparente

dwx_50_closeup2

User-friendly virtual control panel

The DWX-50 features a virtual control panel, or ‘Vpanel’ for short.

It can be used to enter various settings. For example, to select the clamps and determine the zero points.

The VPanel also contains a timer that records the production time. This allows you to keep track of your machine servicing date.



Automatic tool changer and calibration

The automatic tool changer can be loaded with up to five milling tools.

Thus various types of tools can be used for a particular order. The automatic tool changer also warns you if a milling tool is damaged during production.

Thus you can immediately intervene without losing time or material. Thecalibration is done automatically.

The automatic functions enable the device to independently finish an entire milling job from start to finish.

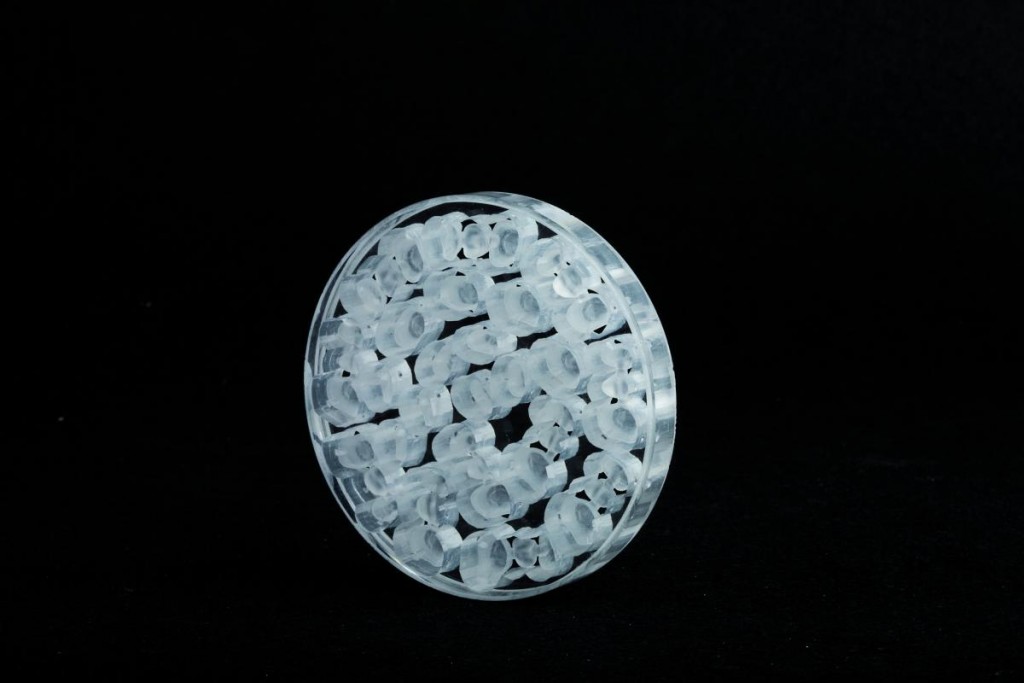

Materiali lavorabili

pmma_1

Take control of production

The DWX-50 is a user-friendly and cost-effective solution for dental labs that wish to control the manufacturing process and prefer not to outsource.

The DWX-50 also is an excellent device for sole proprietors. Your investment will be recouped within a few months.

Open system for easy integration

The compact DWX-50 can be easily integrated into your current production workflow.

The unit can easily be combined with the scanner, CAD/CAM software or tools of your choice.

Authorised Roland dealers can offer you a tailor-made total solutions for starters.

Dust-free production

The DWX-50 has a blower that keeps the tool changer and the milling surface clean.

This ensures accuracy and smoothness in production. The DWX-50 also features a collection system that removes dust.

The dust extraction connection is in the front of the machine, so that the hose can be easily attached and removed.

Connecting multiple machines

You can connect up to four devices to a computer via a USB port.

Labs can therefore easily expand their production in this manner.

Built-in LED lights

The integrated LED lights enable easy monitoring of the production process.

The lamps consume little energy, which again saves you money.

Technical Specifications

Cuttable material   Zirconia (pre-sintered), Wax, PMMA, Composite Resin
 Loadable workpiece  shape   Disc(with levels)  External diameter (level section):  98 mm to 100 mm
External diameter (body section):  95 mm
Height (level section): 10 mm
Height (body section): 12 to 26 mm
Disc(without levels)  External diameter: 98 to 100 mm
Height: 10 to 14 mm, 16 to 20 mm
Block  Width x Depth: 38 mm x 76 mm
Height: 16 mm or 22 mm
 Operating speed   X and Y axes: 6 to 3600 mm/minZ axis: 6 to 1800 mm/min.
 Spindle Motor  Brushless DC motor, maximum 100W
 Spindle speed  6,000 to 30,000 rpm
 Rotary axis travel angle  A:± 360o, B:± 20o
 Number of tools  housed  5
 Attachable  tool
  Shank diameter: 4 mm, Length: 40 to 55 mm
 Compatible  compressed  air  0.02 to 0.2 MPa
 Vacuum requirements  8 kPa Static Pressure or more
 Interface  USB (compliant with Universal Serial Bus Specification Revision 1.1)
  Power requirements  Voltage and frequency: AC100 to 120 V/220 to 240 V ±10%,50/60 Hz  (overvoltage category II, IEC 60664-1)
Required power capacity: 2.8 A (100 to 120 V)/1.2 A(220 to 240 V)
 Power consumption  Approx. 275W
 Operating noise  During operation: 70 dB (A) or less (when not cutting)
 During standby: 45 dB (A) or less
 External dimensions  Width x Depth x Height:  656 x 656 x 557 mm
 Weight  50 Kg
 Installation Environment  Operating environment: Temperature of 5 to 40o C, 35 to 80% relative humidity (no condensation) Ambient pollution degree: 2 (as specified by IEC 60664-1)

System Requirements

 Computer  Model preinstalled with the 32-or 64 bit edition of Windows 8,7, Vista, XP, or upgraded computer originally preinstalled with Widnows XP or later
 USB cable  Use the included USB cable
